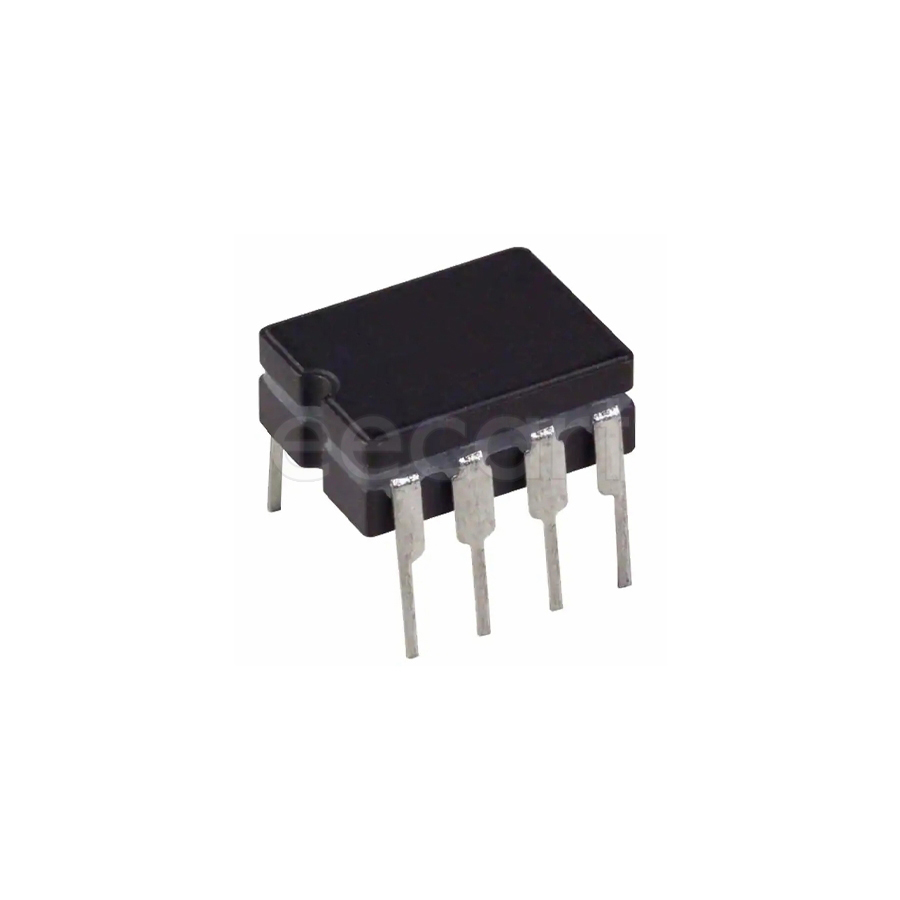

OP200EZ
Manufacturer:
Analog Devices
Mfr.Part #:
OP200EZ
Datasheet:
Description:
Amplifiers - Op Amps, Buffer, Instrumentation CDIP-8 Through Hole General Purpose Amplifiers Number of Circuits:2
| Parameter | Value |
|---|---|
| Length | 10.29 mm |
| Width | 7.87 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 8 |
| Height | 3.56 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Number of Elements | 2 |
| Number of Circuits | 2 |
| Bandwidth | 500 kHz |
| Lifecycle Status | Production (Last Updated: 3 weeks ago) |
| Max Supply Voltage | 18 V |
| Min Supply Voltage | 3 V |
| Number of Channels | 2 |
| Slew Rate | 150 mV/µs |
| Operating Supply Current | 1.55 mA |
| Input Bias Current | 100 pA |
| Quiescent Current | 775 µA |
| Max Supply Current | 1.45 mA |
| Supply Type | Dual |
| Max Input Voltage | 13 V |
| Dual Supply Voltage | 18 V |
| Nominal Supply Current | 570 µA |
| Gain Bandwidth Product | 500 kHz |
| Input Offset Voltage (Vos) | 75 µV |
| Max Dual Supply Voltage | 20 V |
| Min Dual Supply Voltage | 3 V |
| Voltage Gain | 140 dB |
| Number of Amplifiers | 2 |
| Power Supply Rejection Ratio (PSRR) | 124 dB |
| Input Voltage Noise Density | 22 nV/sqrt Hz |
| Schedule B | 8542330000 |
| Manufacturer Lifecycle Status | PRODUCTION (Last Updated: 3 weeks ago) |
| RoHS | Compliant |
| Packaging | Tube |
| Common Mode Rejection Ratio (CMRR) | 130 dB |
| Amplifier Type | General Purpose Amplifiers |
Stock: 4
Distributors
pcbx
pcbxUnit Price$33.12605
Ext.Price$33.12605
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $33.12605 | $33.12605 |
| 10 | $28.13098 | $281.30980 |
